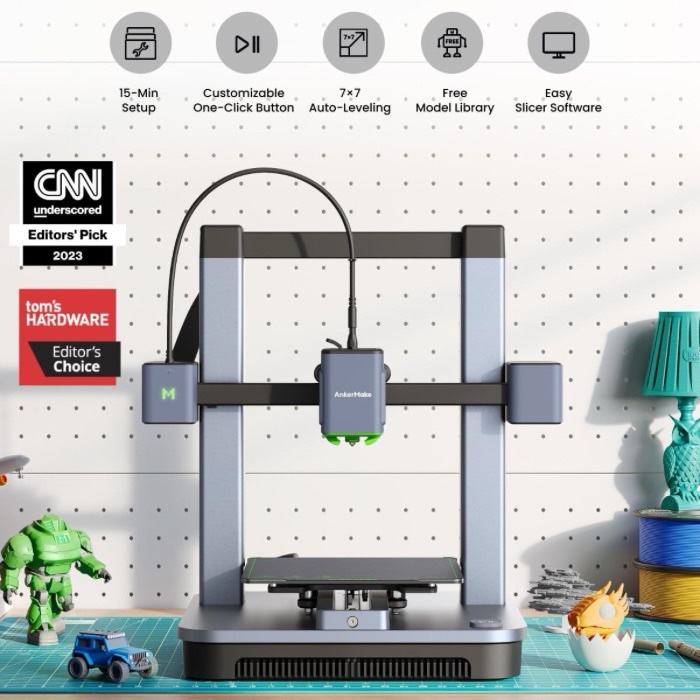

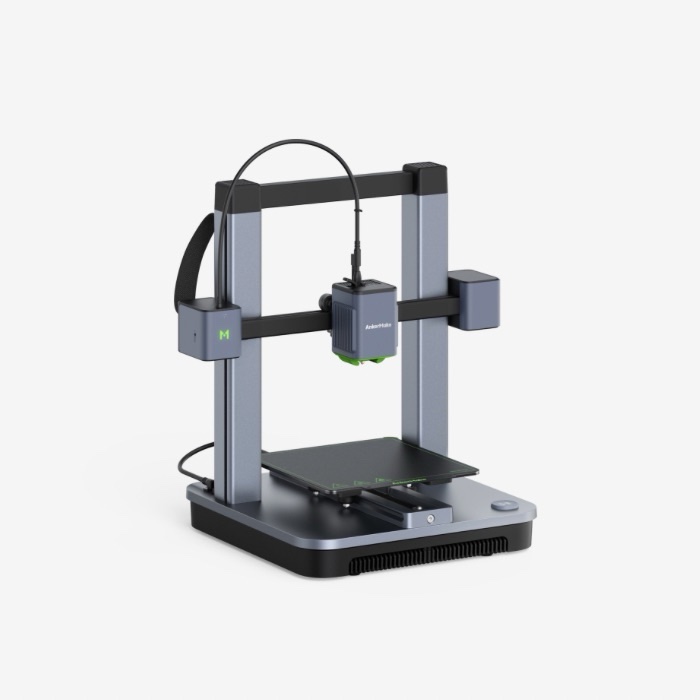

Bring your creations to life with the sleek and robust AnkerMake M5C 3D Printer. Constructed from die-cast aluminum materials and backed by high-speed motors, you get enhanced printing speeds without compromising quality, ideal for both new and seasoned builders.
Build a variety of models with an 22 x 22 x 25cm build area and accelerated print speeds up to 500 mm/s, alongside an enhanced print accuracy up to 0.1mm, ensuring your models are printed quickly while retaining high resolution. Single-extruder design is compatible with a wide range of 1.75mm filaments including ABS, PETG, PLA, and TPU. The heated build plate uses a 7×7 Point auto-leveling algorithm to ensure an optimal printing base that can be lifted from the M5C for easy model removal.
-
Spend 80% Less Time Waiting
With AnkerMake M5C, you can experience 500 mm/s high-speed printing using Fast Mode. Bring your ideas to life and get stunning, high-quality models in less time than it takes to watch a movie. -
PowerBoost 2.0
PowerBoost 2.0 is an upgraded motion control system with a powerful stepper motor, belt driveshaft, and an S-smoothing algorithm that gradually increases the printing speed and acceleration of our 3D printers-without compromising on print quality. -
S-Smoothing Algorithm
Developed based on the Pressure Advance and Input Shaper algorithms in the Klipper firmware to reduce inertia and jerking, and suppress vibrations during high-speed printing. -
Stronger Power Release
With the new algorithm, the pulse frequency of the stepper motor is adjusted in real-time based on motion planning to increase power release by 30% compared to PowerBoost 1.0 -
Maximum 35 mm /s Extrusion Flow
With a powerful extrusion flow rate of 35 mm /s and 82 mm melting chamber, the machine delivers exceptional extrusion force, with a static force of over 150N. This supports a larger filling speed for you to print more models in less time, without compromising on quality. -
Smaller in Size, Larger in Torque
The extrusion motor achieves a 21.6:1 ultra-large reduction ratio through the large 19 mm extrusion gear, which reduces the weight and volume of the nozzle module and improves the accuracy of motion control, making it suitable for high-speed printing. -

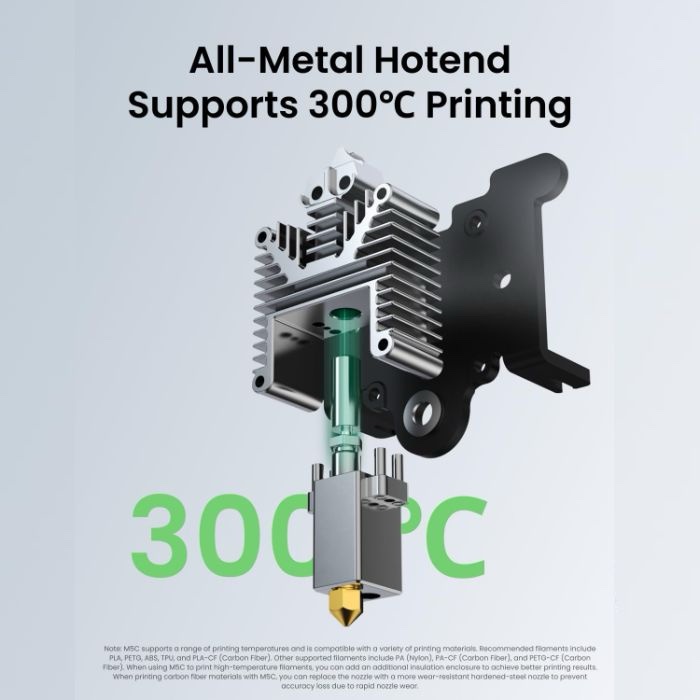

Faster Melting, More Possibilities
The upgraded all-metal extruder hotend features enhanced 60W heating power, allowing for the quick melting of different filaments, resulting in 1.5 times more heating efficiency than traditional printers. -
Double Cooling, Better Shaping
With the double-cooling system, the model cooling air volume can reach 1.72 CFM thanks to a simulated fluid air duct design.
Uses 32 subdivisions for more precise XY axis motion control of the stepper motor.
By accurately controlling flow, you can achieve a layer thickness of 0.05 mm and a surface finish Ra of 3 with a 0.2 mm nozzle, making fine printing faster and more efficient than ever before.
-
Integrated Z-Axis Module
The machine produces less shaking during movement thanks to a three times larger connection area between the Z-axis and the base, and an up to 0.01 mm Z-axis assembly surface that is matched seamlessly with the base. The hidden slider guide design replaces point contact with surface contact, providing better vibration suppression -
Integrated Base
We’ve increased the weight of the base to 5 kg and reduced the center of gravity to achieve lower than 0.09 mm vibration amplitude when printing at high speed.
